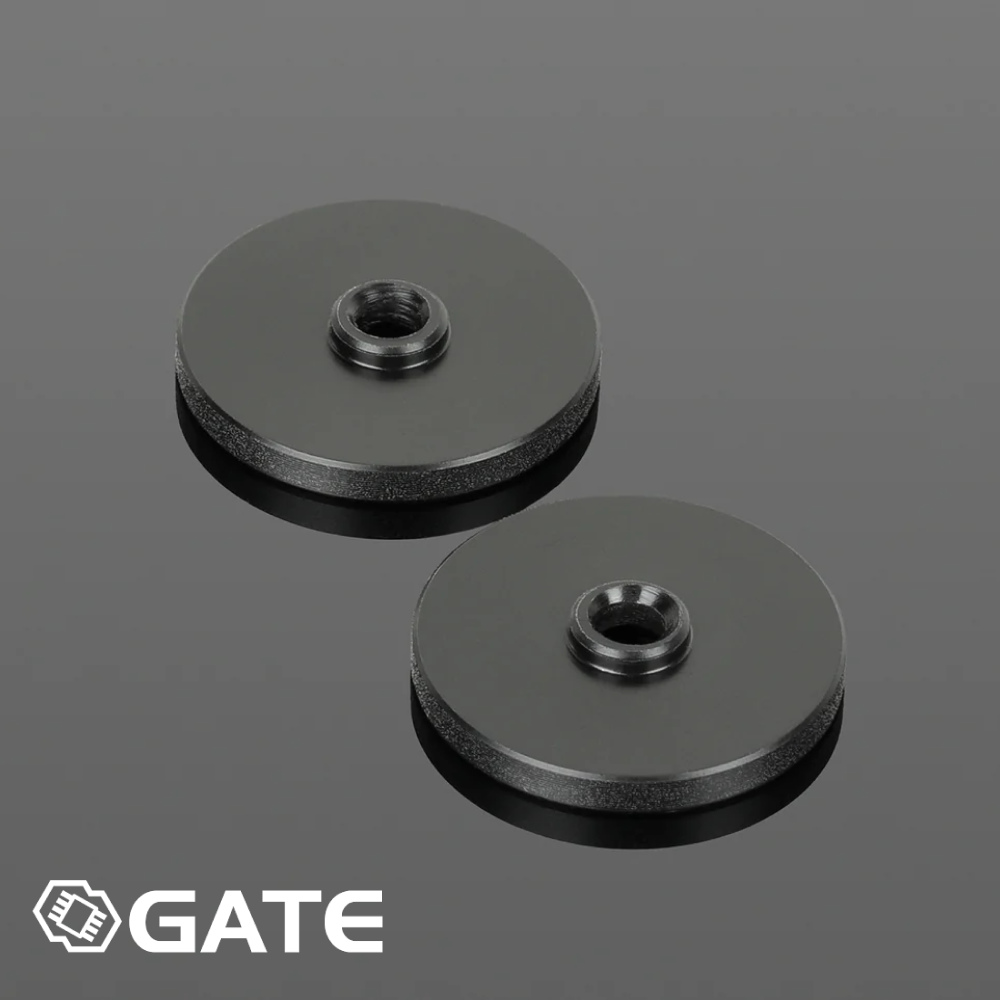

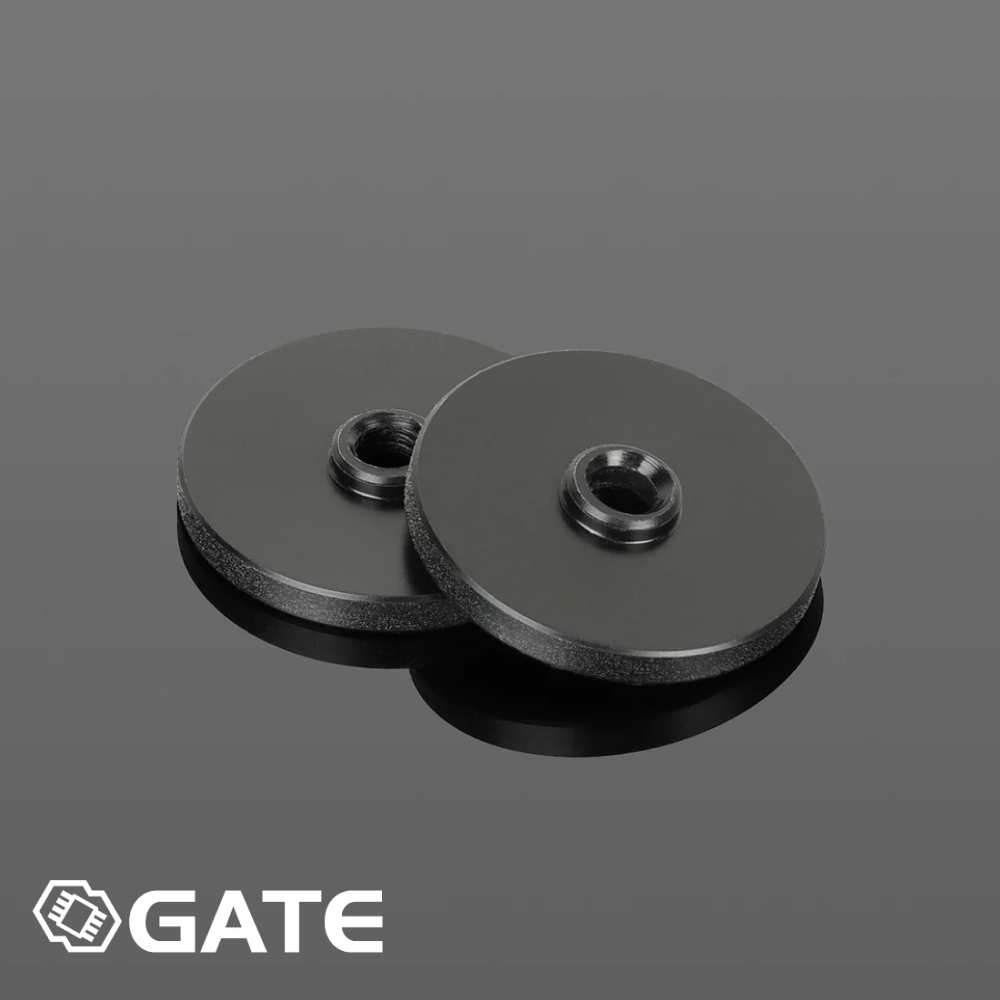

The GATE AOE Spacer is designed to adjust the position of the piston relative to the sector gear, allowing proper correction of the Angle of Engagement (AOE) between the sector gear teeth and piston teeth.
The spacer is installed between the piston and piston head, moving the piston rearward to help achieve more favorable sector gear engagement. Correct AOE can help reduce stress on the piston teeth and improve the durability and reliability of a properly tuned AEG gearbox.
The spacer is specifically designed for components with a 5 mm centering interface. It is compatible with pistons featuring a 5 mm diameter centering hole and piston heads featuring a 5 mm diameter centering spline.
It is fully compatible with GATE EON High Speed and EON Power Hybrid Piston Heads.
Features
- Designed for AOE (Angle of Engagement) adjustment
- Installed between the piston and piston head
- Changes piston position relative to the sector gear
- Helps optimize sector gear-to-piston tooth engagement
- 5 mm piston centering hole compatibility
- 5 mm piston head centering spline compatibility
- Fully compatible with GATE EON High Speed Piston Head
- Fully compatible with GATE EON Power Hybrid Piston Head
- Useful for precision gearbox tuning and custom builds
Specifications
- Type: AOE Spacer
- Application: Piston / Piston Head Spacing
- Piston Centering Hole Diameter: 5 mm
- Piston Head Centering Spline Diameter: 5 mm
- Installation Position: Between Piston and Piston Head
- Compatibility: AEG piston assemblies with 5 mm centering interface
- EON Compatibility: EON High Speed / EON Power Hybrid Piston Heads
- Brand: GATE
- Origin: Made in Poland
What's Included
- 1x GATE AOE Spacer
Important Notes
- 5 mm compatibility must be verified before installation.
- The piston must have a 5 mm centering hole, while the piston head must have a 5 mm centering spline.
- Proper AOE should be checked after installation before operating the gearbox.
- Professional installation and gearbox tuning are recommended.
Disclaimer
⚠️ This product is an upgrade part intended for airsoft toys only. Not for real firearms.
