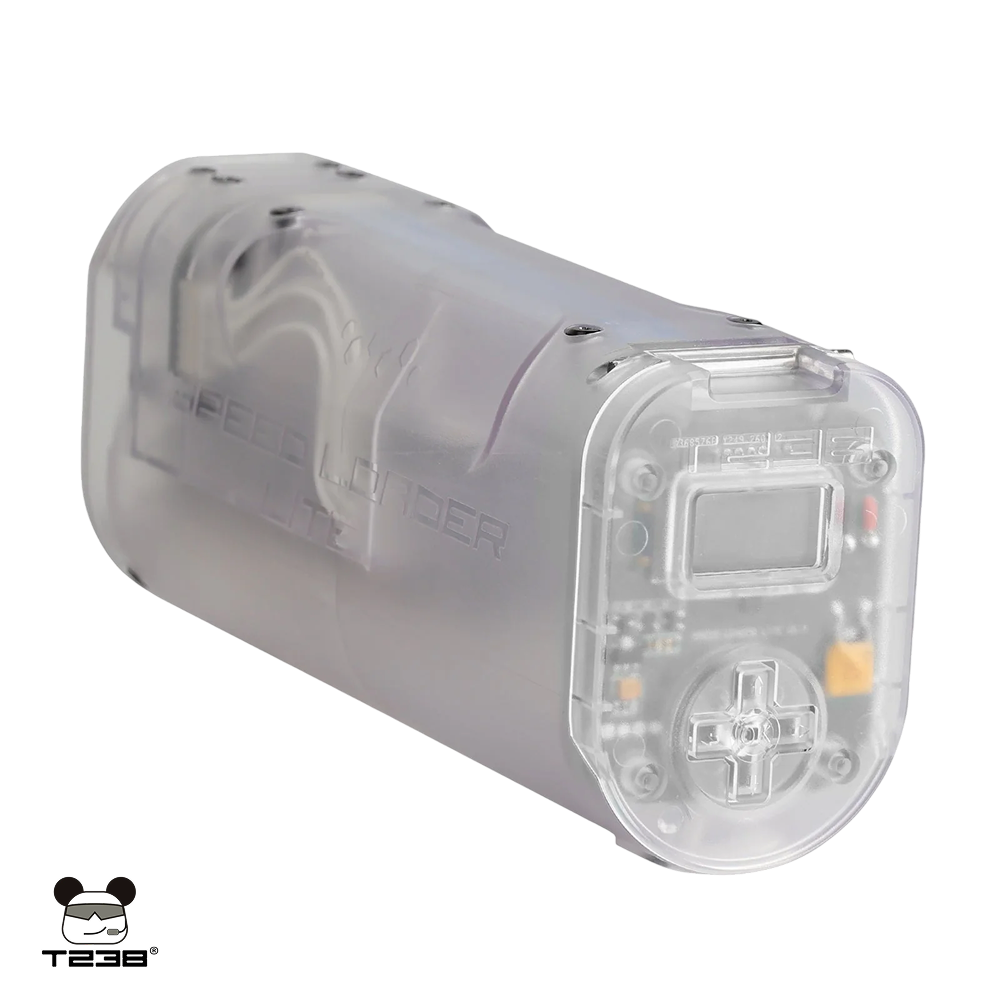

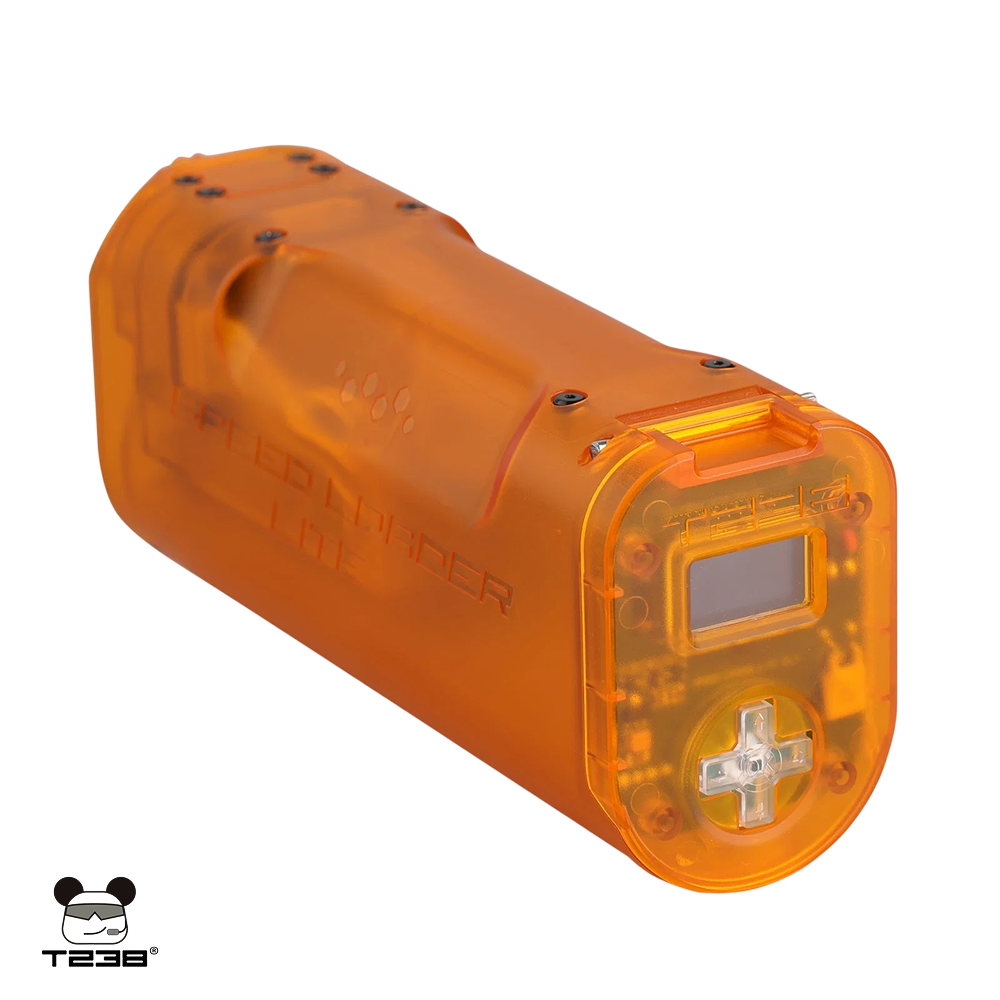

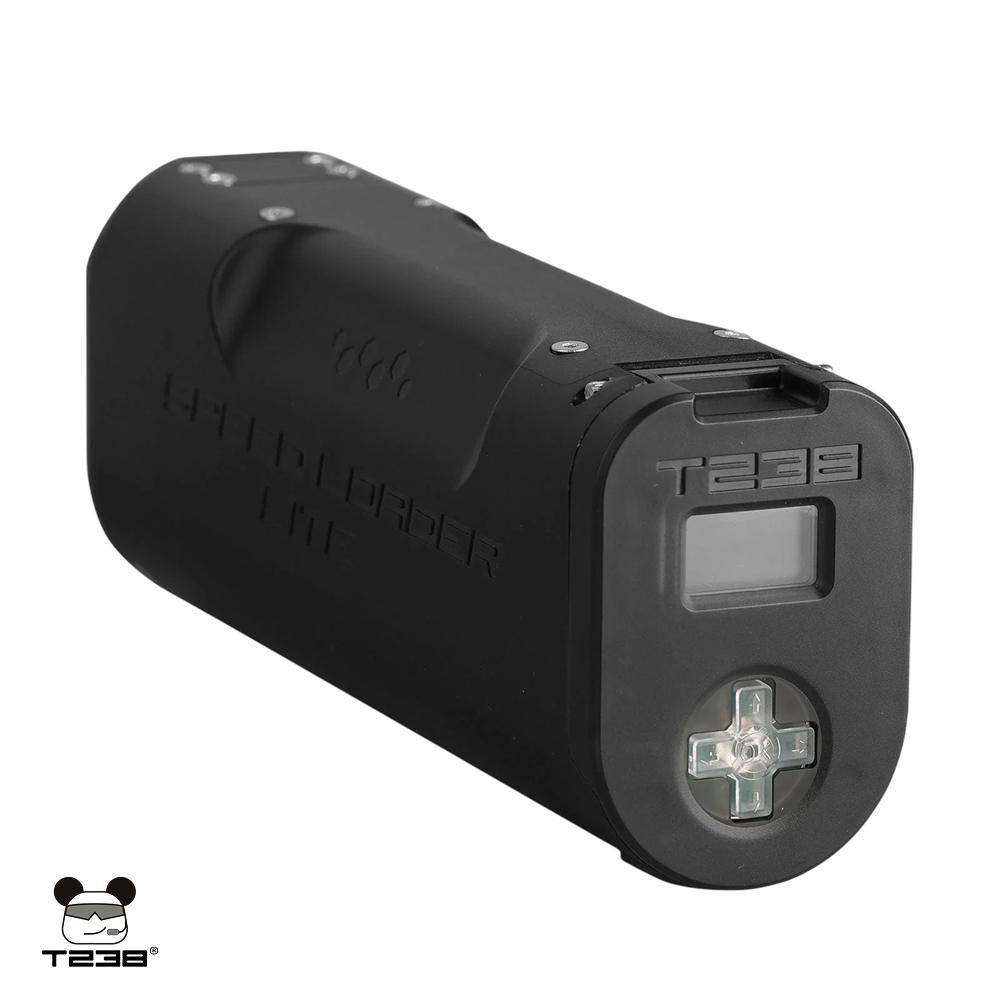

The T238 Electric Speed Loader Lite Edition is a compact, high-performance electric BB loader designed for fast and effortless magazine loading. Its portable size allows it to fit easily inside a magazine pouch or radio pouch, making it convenient for both field use and workshop setups.

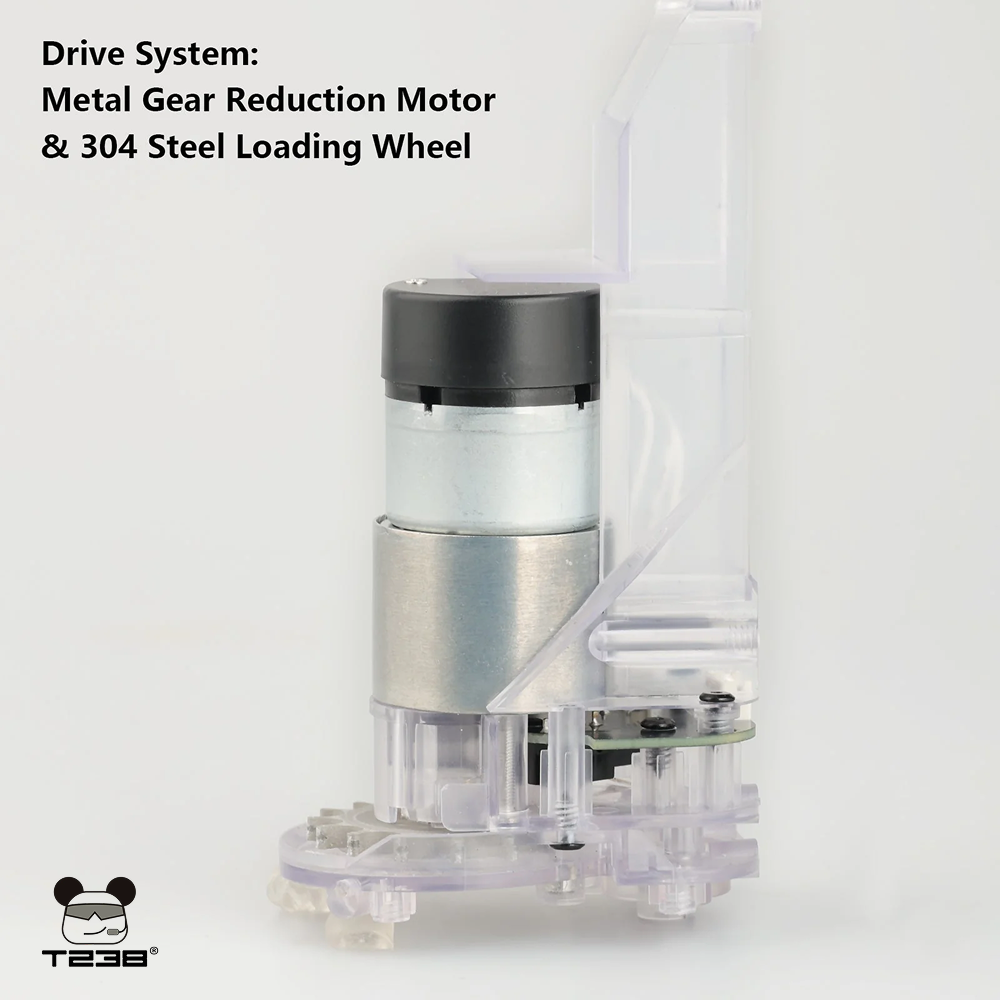

Powered by a high-torque motor with a 304 stainless steel loading wheel, the Lite Edition produces approximately 55N of loading thrust and can handle demanding magazines such as the PTS EPM1 250-round magazine. It reaches loading speeds of up to 16 BBs per second at 12.6V.
The loader supports both Preset Fixed Quantity Mode and Dynamic Manual Mode, with five independent preset slots allowing users to save different magazine capacities. An OLED display provides real-time information including voltage, BB count, and loading speed.
Key Features
- 55N High Loading Thrust – Steel loading wheel effortlessly handles heavy-spring magazines, including the PTS EPM1 250rd
- 16 BBs/sec Turbo Loading – Maximum loading speed at 12.6V
- 304 Stainless Steel Loading Wheel – Durable full-metal loading mechanism for reliable operation

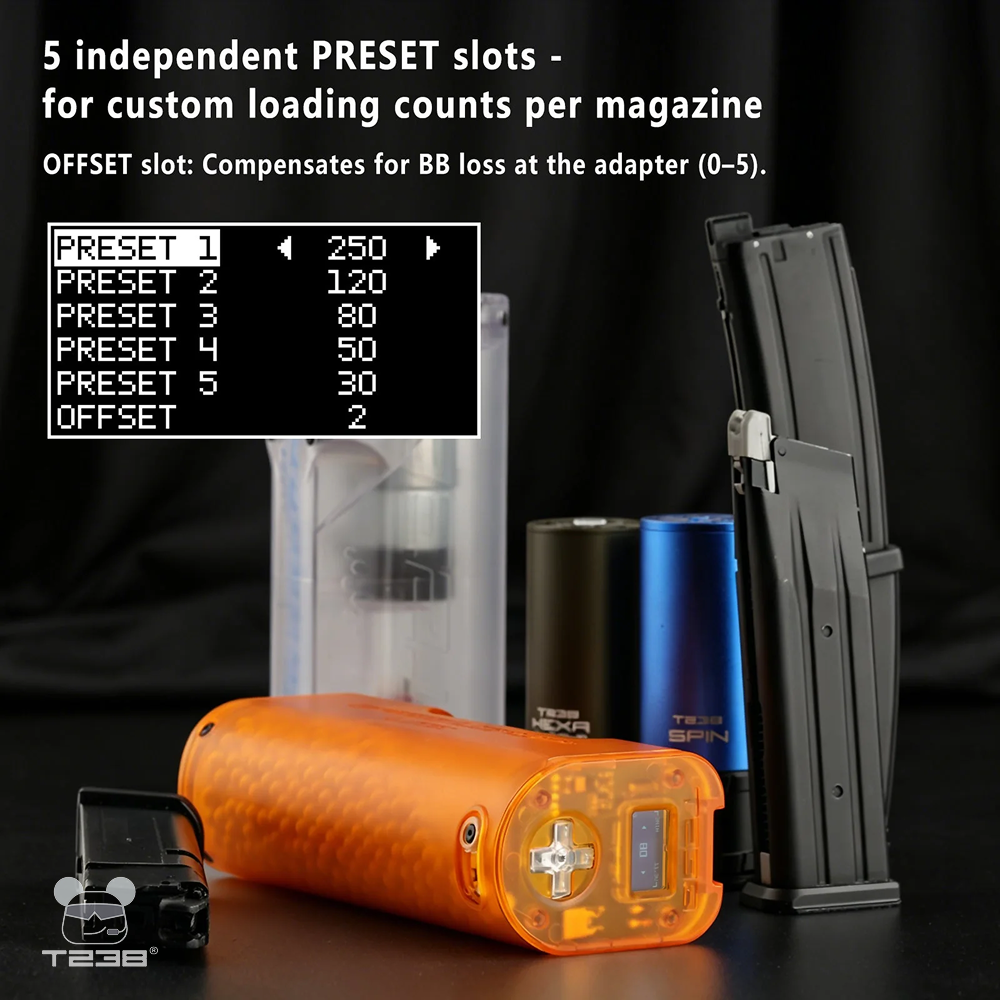

- 5 Independent Preset Slots – Save custom loading quantities for different magazines
- Adjustable Loading Count (1–999 BBs) – Automatically stops when the selected quantity is reached
- Offset Adjustment (0–5 BBs) – Compensates for BBs retained or lost within the adapter
- Dynamic Manual Mode – Starts loading when the magazine contacts the loader and stops when released
- Universal Compatibility – Includes four adapters covering AEG, GBB, gas shotgun shell, and spring bolt-action magazines
- Auto Jam Recovery – Motor automatically reverses three times to clear blockages
- Anti-Stall Protection – Encoder motor cuts power within approximately 0.01 seconds when a stall is detected
- Low BB Alert – OLED warning and buzzer when the loader runs out of BBs
- Smart Voltage Control – Automatically detects 2S / 3S LiPo batteries and provides voltage protection
- ESC Overheat Protection – Throttles power at temperatures of 85°C and above
- Auto Sleep – Selectable 30 / 60 / 90 / 120-minute inactivity shutdown

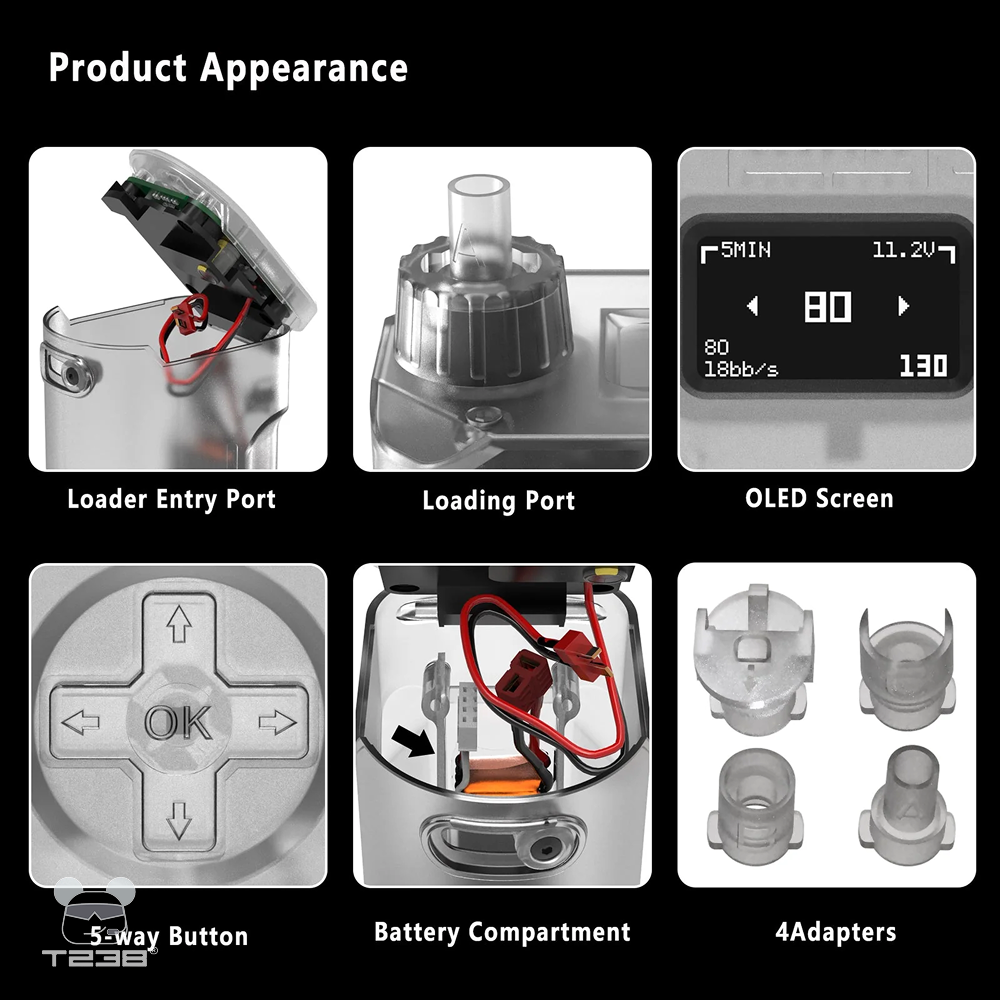

- Real-Time OLED Display – Shows voltage, BB count, and loading speed
Magazine Adapter Compatibility
- Adapter A: Most AEG magazines, including AK and AR-style magazines
- Adapter B: Gas shotgun shells
- Adapter C: Most spring-powered bolt-action magazines
- Adapter D: Most GBB magazines, including WE, GHK, MWS, and Tokyo Marui
Different GBB magazines may require different loading angles for proper operation.

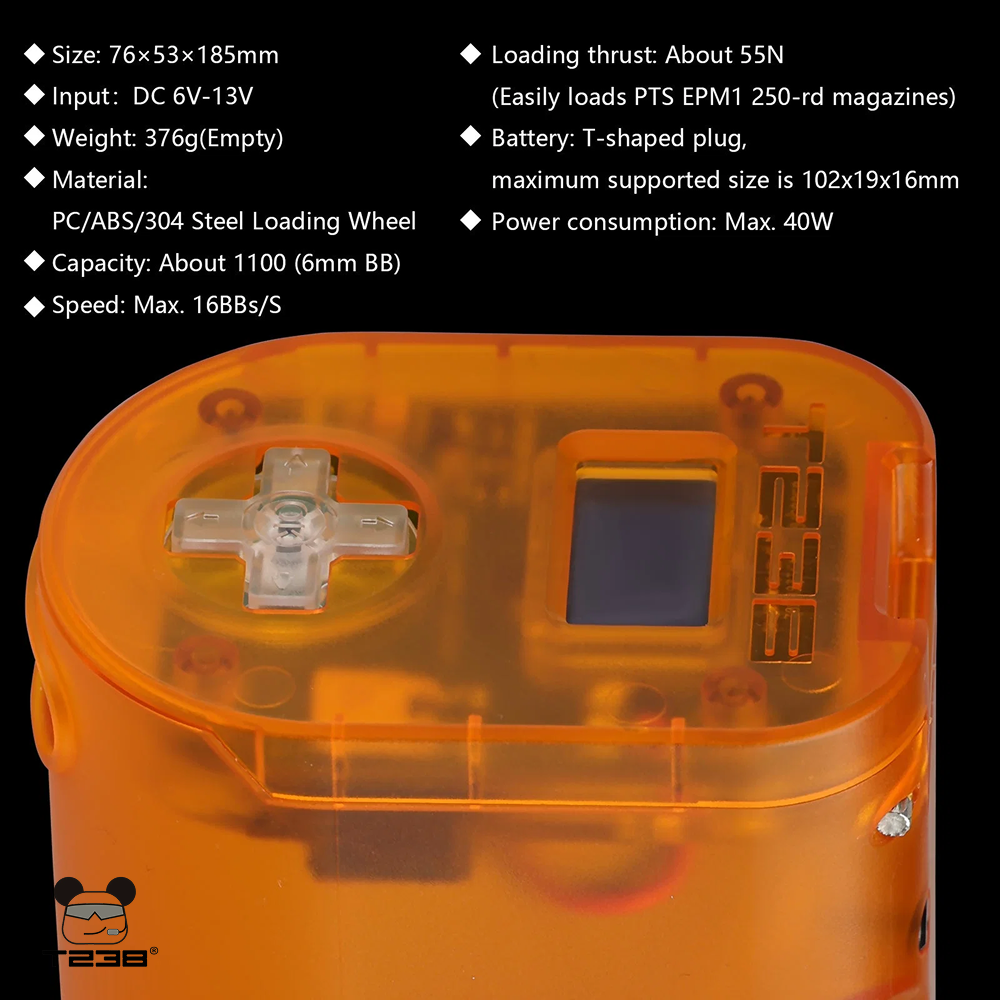

Specifications
- Capacity: Approx. 1,100 6mm BBs
- Maximum Loading Speed: 16 BBs/sec @ 12.6V
- Maximum Loading Thrust: Approx. 55N
- Loading Wheel: 304 Stainless Steel
- Motor: High-Torque Gear-Reduced Motor
- Motor Torque: 17 kg·cm
- Battery Compatibility: 2S / 3S LiPo
- Battery Connector: T-Plug / Deans
- Maximum Battery Size: 102 × 19 × 16mm
- Maximum Power Consumption: 40W
- Dimensions: 76 × 53 × 185mm
- Weight: 376g
- Materials: PC / ABS / Steel Loading Wheel
- Operating Temperature: -20°C to 45°C
- BB Compatibility: 6mm Plastic BBs
- Brand: T238
- Origin: China
What's Included
- 1x T238 Electric Speed Loader Lite Edition
- 1x Adapter A – AEG Magazine Adapter
- 1x Adapter B – Gas Shotgun Shell Adapter
- 1x Adapter C – Spring Bolt-Action Magazine Adapter
- 1x Adapter D – GBB Magazine Adapter
- 1x T238 Speed Loader Morale Patch
- 1x Product Manual
Important Notes
- Designed for 6mm plastic BBs only.
- Do not use metal BBs or projectiles of other diameters.
- Maximum supported voltage is below 13V; exceeding this may permanently damage the electronics.
- Always verify battery polarity before connection. Reversed polarity may damage the motherboard.
- Disconnect the battery before attempting to clear a blockage.
Disclaimer
⚠️ This product is an upgrade part intended for toys only. Not for real firearms.
